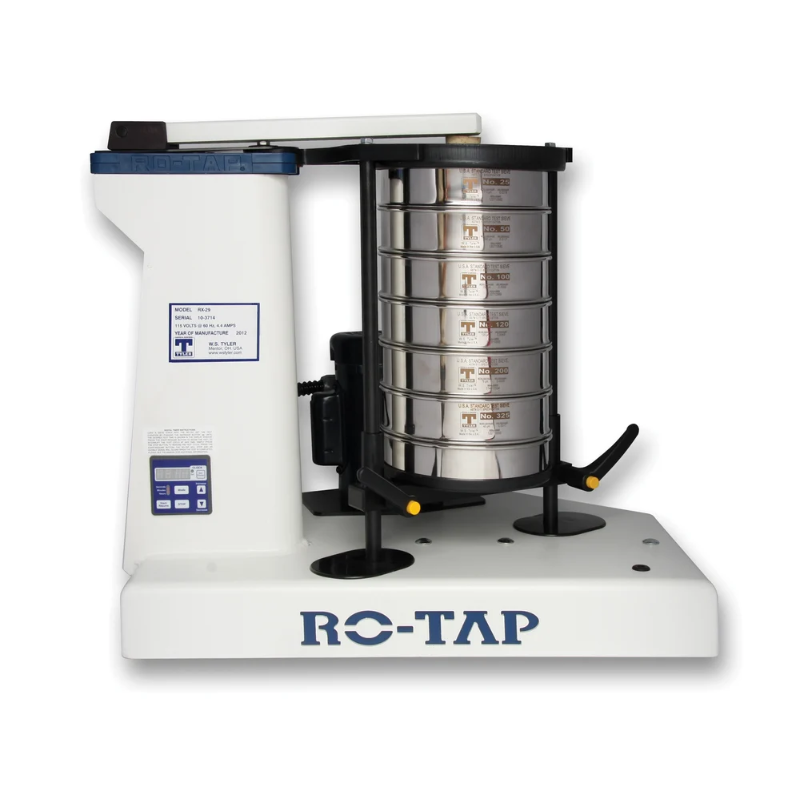

W.S. Tyler RO-TAP RX-29
Specifications :
| Dimensions | 28 x 21 x 25 (71 cm x 54 cm x 64 cm) |
| Weight | 180 lbs. (82kg) |
| Particle Size Range | 4″ to US #635 mesh (20 um) |
| Test Sieve Compatability | 8″ or 200mm Diameter |
| Test Sieve Capacity | Up to 6 full-height sieves or Up to 13 half-height sieves |
| Oscillations Per Minute | 278 +/- 10 |
| Taps Per Minute | 150 +/- 10 |
| Voltage | 115v or 230v at 50 or 60 Hz |
Description
The gold standard in test sieve shakers, W.S. Tyler’s RO-TAP® utilizes a unique two-dimensional operation: a horizontal, circular, and vertical tapping motion. This dual action allows particles to stratify and “seek” critical openings in the test media.
In turn, the most accurate and consistent particle analysis testing is achieved with minimal maintenance.
The RX-29 is designed for use with 8-inch diameter test sieves.
Each unit is tested and serialized before shipment. It features a 99-minute digital timer/clock with a tolerance of .1 seconds.
- Requires minimal maintenance
- Heavy-duty use
- Features 99-minute digital timer/clock, tolerance, 0.1 second
- Each unit is test run and serialized prior to shipment
