MRU SWG100 CEM – Stationary Gas Analyzer
Spesifications :
| O2 | 0 … 25 % (electrochemical) |
| O2 | 0 … 25% (paramagnetic) |
| CO | 0 … 4.000, overload 10.000 ppm (electrochemical) |
| NO | 0 … 1.000, overload 5.000 ppm (electrochemical) |
| NO2 | 0 … 200, overload 1.000 ppm (electrochemical) |
| SO2 | 0 …2.000, overload 5.000 ppm (electrochemical) |
| CO2 | 0 … 50 % (NDIR) |
| Display | 3,5″ TFT color and backlit display |
| Operating temperature | +5°C…+45°C standard, +5°C…+55°C with Vortec cooler, -10°C…+45°C with cabinet heater |
| Protection | IP 54 |
| Power supply | Universal 100-240 Vac/47-63 Hz/200 W |
| Weight | approx. 50 kg |
| Dimensions | (H x W X D) 600 x 700 x 210 mm for wall or rack mounting |

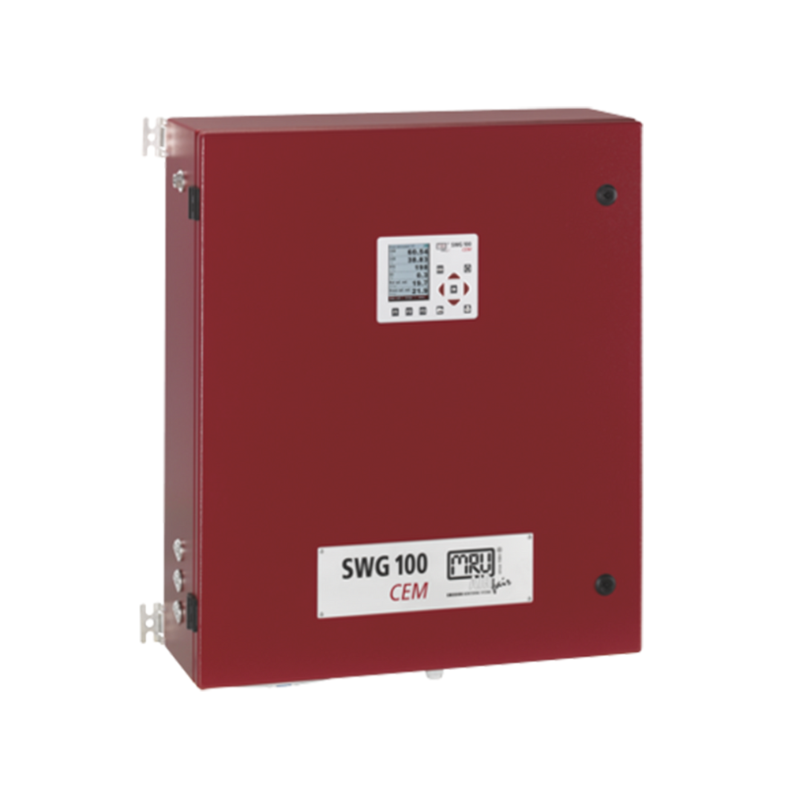

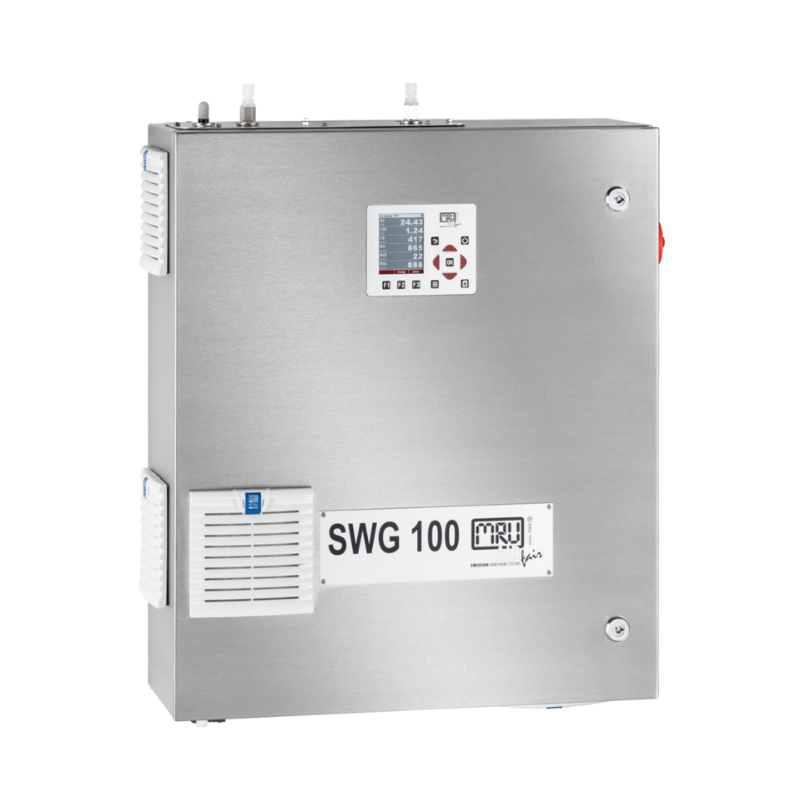

SWG100 CEM – Low Cost Stationary Gas Analyzer
Optimal gas analysis arount the clock
With SWG 100 CEM (Continuous Emission Monitoring) we offer you a cost-effective, reliable system for emission and combustion monitoring. Suitable for various industrial sectors:
– Diesel engines
– Methane/natural gas boilers
– Landfill gas/biogas CHPs
– Bagasse and biomass boilers and others.
With SWG 100 CEM, simultaneous infrared analysis of up to 3 flue gas components is possible. Further more it is possible to measure 3 more components simultaneously electrochemicaly. Alternatively up to 5 components may be measured simultaneously on electrochemical basis. The electrochemical sensors are O₂ – CO – NO – NO₂ – SO₂.
We offer you these special advantages:
– Single heat exchanger and Peltier- gas cooler with automatic condensatepump
– No dilution of sample gas needed, simulatenous measurement of all gas parameters
– Direct and continuous measurement, with pressure- and temperature compensation
– Automatic zero point using clean ambient air
– Internal flow monitoring with alarm indication in the display, e.g. In case of clogged probe or internal filter
– Gas sampling from –150 mbar low pressure up to +50 mbar flue gas pressure
