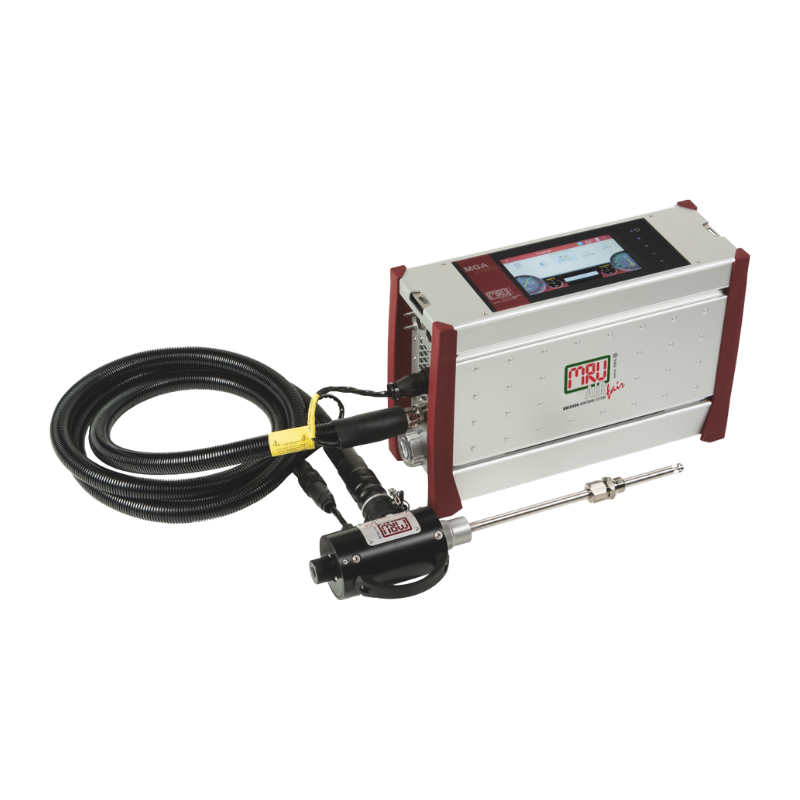

MRU MGAprime – Portable High-end Fluegas Analyzer
Spesification :
| O2 | (paramagnetic) 0 … 25,00 % |
| CO2 | (NDIR) 0 … 50 % |
| CO | (NDIR) 0…175 / 10.000 ppm |
| HC (CH4) | (NDIR) 0 … 500 / 10.000 ppm |
| HC (C3H8) | (NDIR) 0 … 200 / 5.000 ppm |
| NO | (NDIR) 0 … 200 / 4.000 ppm |
| NO2 | (NDIR) 0 … 150* / 1.000 ppm *only possible with optional acid dosage box |
| SO2 | (NDIR) 0 … 150* / 4.000 ppm *only possible with optional acid dosage box |
| N2O | (NDIR) 0 … 100 / 500 ppm |
| H2 | 0…1.000ppm, Überlast bis 2.000ppm 0…10.000ppm, overload 20.000ppm |
| Fluegas temperature | 800°C, optionally 1.700°C |
| Ambient air temperature | 0°C … 100 °C |
| Differential pressure | -120 … +120 hPa |
| Flow Velocity | 3 … 100 m/s |
| Operating system | LINUX |
| Display | 7“ TFT (800 x 480 px) colour display, backlit, with touch pad |
| Data storage | internal 10.000 data sets, external USB stick |
| Interfaces | Ethernet, Bluetooth, WLAN, RS485 |
| Printer | external thermal printer only |
| Battery capacity | Li-Ion , 96 W, for approx. 1 hour „stand-by“ |
| Operating temperature | +5 … +50 °C ; RH up to 95 % non condensing |
| Storage temperature | -20 … +50 °C |
| Power supply | 86 … 265 Vac / 47 … 63 Hz / 105 W (analyser only) |
| Protection | IP20 (or IP42 inside transport bag) |
| Dimensions | 430 x 290 x 150 mm (w x H x D) |
| Weight | approx. 7,5 kg for minimal configuration |
MRU MGAprime – Portable High End Fluegas Analyzer
Highly precise NDIR measuring technique for AMS Reference method and long time measurements of Industrial combustions
MGAprime is a high-end portable flue gas analyzer that combines an O2 Paramagnetic / Electrochemical sensor with up to 8 NDIR sensors.
MGAprime is suitable for use as a reference method for CEMS and is equipped with a heated sampling line, double-stage gas cooler, and an optional Acid Dosage Pump to enhance measurement accuracy, making it ideal for long-term monitoring.
MGAprime combination measuring sensor :
– O2 : Paramagnetic / Electrochemical sensor
– H2S : Electrochemical sensor
NDIR sensor :
– 8 NDIR : CO, NO, NO2, SO2, CO2, CH4, C3H8, N2O
– 6 NDIR : CO, NO, NO2, SO2, CO2, CH4
– 6 NDIR : CO, NO, NO2, SO2, CO2, C3H8
